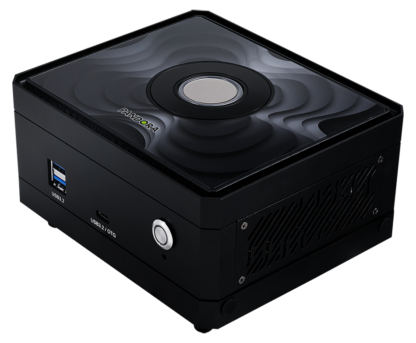

PALIT PANDORA JETSON NANO 8GB

PALIT PANDORA JETSON NANO 8GB

Технически параметри

Manufacturer

Palit

Part number / Product code

A003FV1P1

Model

Pandora NVIDIA Jetson Orin Nano Super

Mainboard

Pandora NVIDIA Jetson Orin Nano Super

Chipset

NVIDIA Jetson Orin Nano 8GB Super SoM

CPU model

6-Core Arm Cortex-A78AE v8.2 64-bit

Memory size

8 GB

Memory type

LPDDR5

Memory

8 GB LPDDR5, 128-bit, 102 GB/s Bandwidth

Graphics

NVIDIA Ampere GPU
1024 CUDA Cores
32 Tensor Cores

SSD

128 GB Pre-installed M.2 NVMe SSD
Additional NVMe Storage Supported

Disk specifications

M.2 2280 PCIe Gen4 ×2 (Pre-installed SSD)
Additional M.2 PCIe Gen4 ×4 Slot

Display

External Display via HDMI 1.4

I/O

1 × HDMI 1.4
2 × USB 3.2 Gen 2 Type-A
1 × USB 3.2 Gen 2 Type-C (OTG)
2 × USB 2.0 Type-A
2 × RJ45
2 × 3.5 mm Audio Jacks

Interfaces/Ports

HDMI
USB-A
USB-C
Gigabit Ethernet
Audio In/Out
MIPI CSI-2
GPIO
UART
I2C
SPI
CAN Bus

Expansion slots

1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD )
1×M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards
1×M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support WiFi Module.
1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module.

LAN

2 × Gigabit Ethernet (10/100/1000 Mbps)

Wireless

Optional via M.2 Wi-Fi Module

Bluetooth

Optional via Compatible Wireless Module

Built-in devices

NVIDIA Jetson Orin Nano SoM
128 GB SSD
Rechargeable RTC Battery

Camera

External MIPI CSI-2 Camera Support
8 Lanes

Audio

1 × 3.5 mm Line In
1 × 3.5 mm Line Out
I2S Interface

Power supply

DC Input: 9–36 V

Features

Up to 67 TOPS AI Performance
NVIDIA Ampere GPU
Edge AI Computing
4 × M.2 Expansion Slots

Mechanical design

Compact Embedded AI Computer

Other

40-Pin Expansion Header
14-Pin Header
Nano SIM Slot
Firmware Upgradable
Operating Temperature: 0–60°C with Airflow
Storage Temperature: -20–80°C

Weight

470 g

Dimensions

145 × 123 × 66 mm

Гаранция

24 месеца
