В наличност

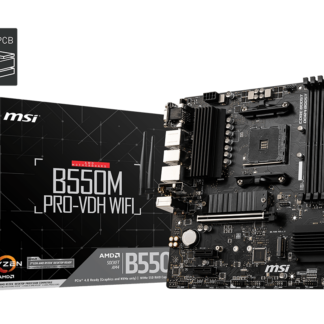

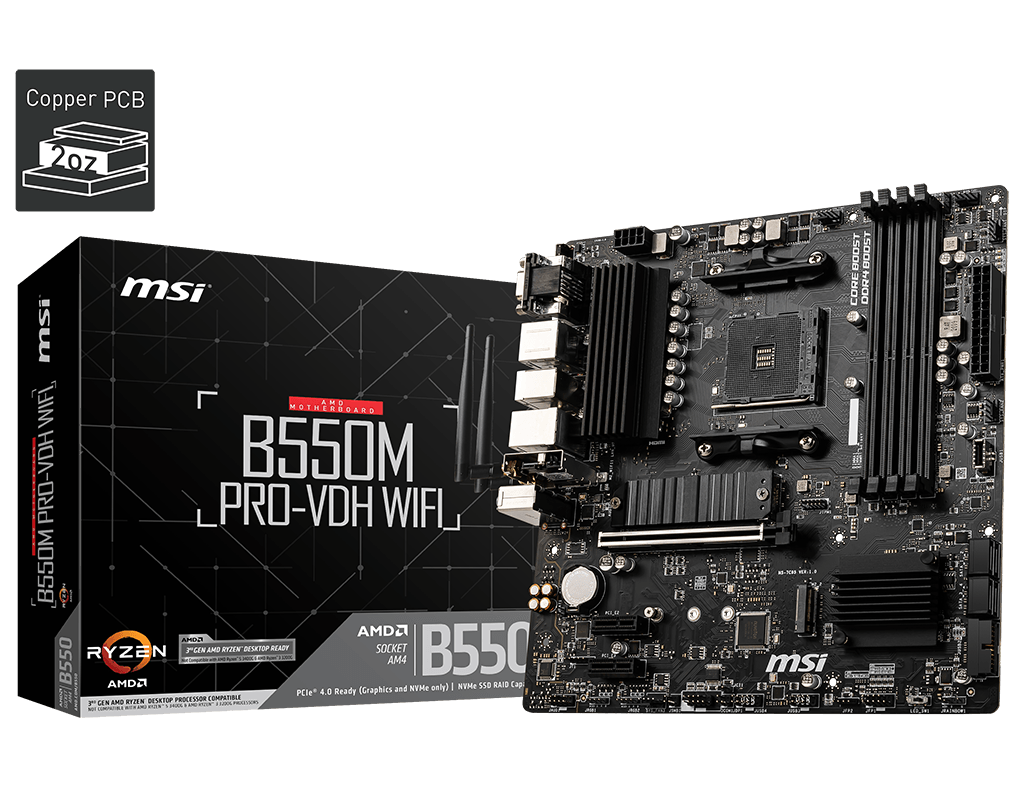

MSI B550M PRO-VDH WIFI /AM4
Код: GSOL-07BAEA7BB9A4
125,74 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
MSI B550 4xDDR4 4xSATA3 RAID HDMI DP VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1 WiFi
Технически параметри
- Graphics
- 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
Maximum shared memory of 16 GB - Chipset
- AMD B550 Chipset
- Expansion slots
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
2x PCIe 3.0 x1 slots - Storage
- AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices - Rear panel I/O
- VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS Button
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi Antenna connectors
3x Audio jacks - Audio
- Realtek® ALC892 Codec
7.1-Channel High Definition Audio - Lan
- 1x Realtek® 8111HN Gigabit LAN controller
- Form factor
- Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) - Other
- Intel® Dual Band Wireless-AC 3168
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 - Warranty
- 36 Months
- Производител
- MSI
- Чипсет
- AMD B550
- Брой слотове за памет DDR4
- 4
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | MSI |
|---|---|
| Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; Maximum shared memory of 16 GB |
| Chipset | AMD B550 Chipset |
| Expansion slots | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 2x PCIe 3.0 x1 slots |
| Storage | AMD B550 Chipset; 4x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices |
| Memory type | 4x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHZ; 1DPC 2R max speed 3733 MHZ; 2DPC 1R max speed 3866 MHZ; 2DPC 2R max speed 3466 MHZ; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory; Supports un-buffered memory |
| Rear panel I/O | VGA; USB 3.2 Gen 1 5Gbps Type-A; Keyboard / Mouse; LAN; Flash BIOS Button; DisplayPort; HDMI; USB 2.0; USB 3.2 Gen 1 5Gbps Type-A; Wi-Fi Antenna connectors; 3x Audio jacks |
| Connectors | 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Serial port connector; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1xTPM module connector; 1x Clear CMOS jumper |
| Audio | Realtek® ALC892 Codec; 7.1-Channel High Definition Audio |
| Lan | 1x Realtek® 8111HN Gigabit LAN controller |
| Form factor | Micro-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Other | Intel® Dual Band Wireless-AC 3168; Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.; Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
| Warranty | 36 Months |
| Производител | MSI |
| Чипсет | AMD B550 |
| Брой слотове за памет DDR4 | 4 |
| Брой SATA3 портове за диск | 4 |
От поръчката до готовата машина
След поръчката потвърждаваме наличността и срока по телефона.
Срок за доставка: 1–7 работни дни. Цената е крайна и е с включен ДДС.
При въпрос или необходимост от промяна се свързваш директно с GSOL, а не с анонимен външен склад.
