В наличност

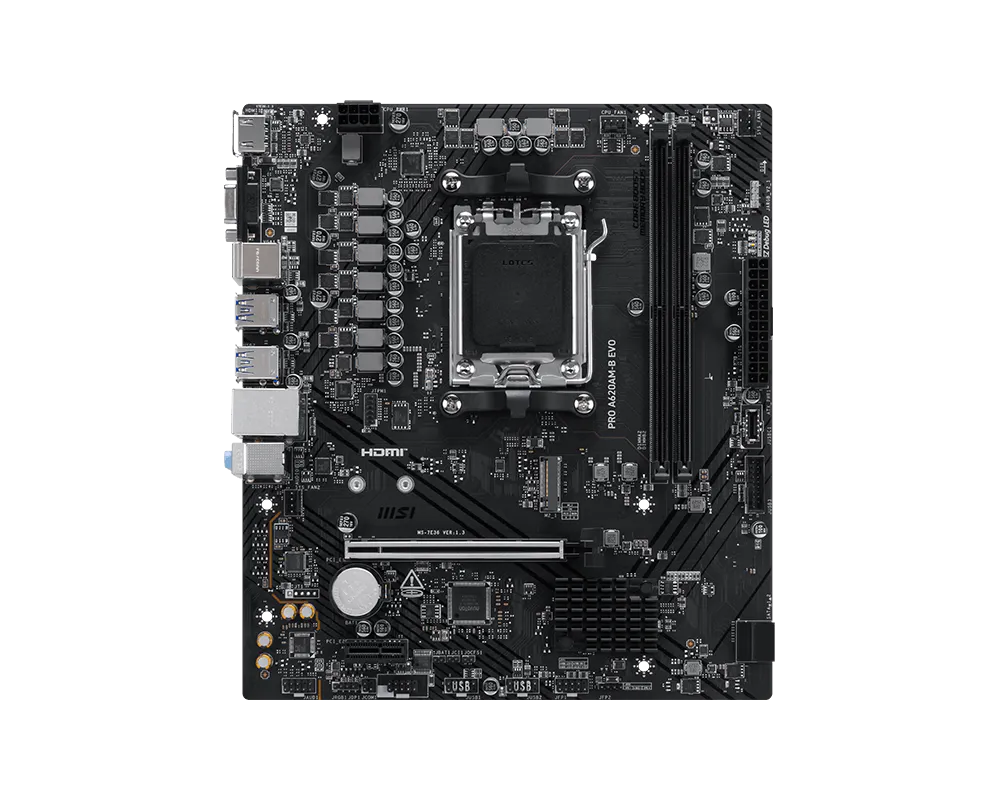

MSI PRO A620AM-B EVO
Код: GSOL-D01A4E7A96E3
86,56 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
MSI PRO A620AM-B EVO
Технически параметри
- Manufacturer
- MSI
- Model
- PRO A620AM-B EVO
- Socket
- Socket AM5
- Graphics
- 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz - CPU's supported
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Chipset
- AMD A620A
- Expansion slots
- 1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) - Storage
- 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
2x SATA 6G
M2_1 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) - RAID
- Supports RAID 0 and RAID 1 for SATA storage devices
- Rear panel I/O
- HDMI™
VGA
Keyboard/Mouse
USB 5Gbps Type-A
LAN port
Audio connectors
USB 2.0 - USB
- 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front) - Connectors
- 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports - Audio
- Realtek® ALC897 Codec
7.1-Channel High Definition Audio - Lan
- Realtek® RTL8125 2.5G LAN
- OS
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- Other
- 4x EZ Debug LED
1x EZ Memory Detection LED - Dimensions
- mATX 218mmx243.84mm
- Гаранция
- 36 месеца
| Марка | MSI |
|---|---|
| Manufacturer | MSI |
| Model | PRO A620AM-B EVO |
| Socket | Socket AM5 |
| Graphics | 1x HDMI™; Support HDMITM 2.1, maximum resolution of 4K 60Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset | AMD A620A |
| Expansion slots | 1x PCI-E x16 slot; • Supports x16 (For Ryzen™ 9000 and 7000 Series processors); • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports x4 (For Ryzen™ 8500/ 8300 Series processors); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 1x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 2x SATA 6G; M2_1 slot; • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors); • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| Memory type | 2x DDR5, Maximum Memory Capacity 128GB; Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MT/s; • 1DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPO™; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only |
| Rear panel I/O | HDMI™; VGA; Keyboard/Mouse; USB 5Gbps Type-A; LAN port; Audio connectors; USB 2.0 |
| USB | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front) |
| Connectors | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
| Lan | Realtek® RTL8125 2.5G LAN |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Other | 4x EZ Debug LED; 1x EZ Memory Detection LED |
| Dimensions | mATX 218mmx243.84mm |
