В наличност

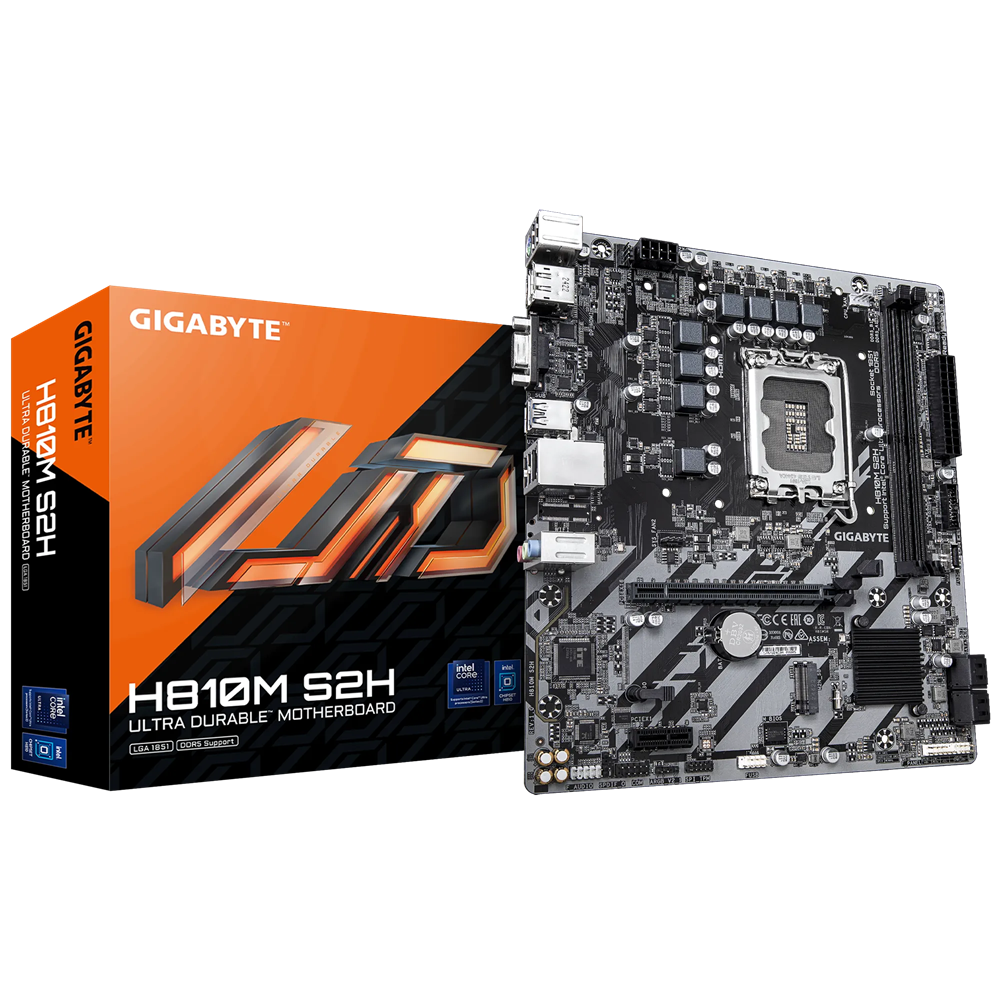

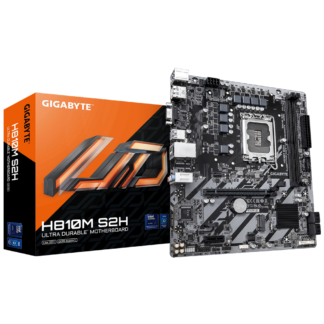

GB H810M S2H /LGA1851
Код: GSOL-21FD276B4276
112,76 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
GB H810 2xDDR5 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
Технически параметри
- Chipset
- Intel® H810 Express Chipset
- Expansion slots
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) - Memory type
- Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules - Rear panel I/O
- iTE® I/O Controller Chip
- USB
- Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header
- 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel - Audio
- Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out - Lan
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- BIOS
- 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Form factor
- Micro ATX Form Factor
24.4cm x 21.5cm - OS
- Support for Windows 11 64-bit
Support for Windows 10 64-bit
Norton® Internet Security (OEM version)
LAN bandwidth management software - Брой слотове за памет DDR5
- 2
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | GIGABYTE |
|---|---|
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz;* Support for DisplayPort 2.1 version.;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time |
| Chipset | Intel® H810 Express Chipset |
| Expansion slots | CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Memory type | Support for DDR5 6400/5600 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules |
| Rear panel I/O | iTE® I/O Controller Chip |
| USB | Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header;- 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header);Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel |
| Connectors | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable RGB Gen2 LED strip headers;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x S/PDIF Out header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;1 x PS/2 keyboard/mouse port;1 x HDMI port (Note);1 x DisplayPort (Note);1 x D-Sub port;1 x USB 3.2 Gen 1 port;5 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks |
| Audio | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| OS | Support for Windows 11 64-bit;Support for Windows 10 64-bit;Norton® Internet Security (OEM version);LAN bandwidth management software |
| Брой слотове за памет DDR5 | 2 |
| Брой SATA3 портове за диск | 4 |
От поръчката до готовата машина
След поръчката потвърждаваме наличността и срока по телефона.
Срок за доставка: 1–7 работни дни. Цената е крайна и е с включен ДДС.
При въпрос или необходимост от промяна се свързваш директно с GSOL, а не с анонимен външен склад.
