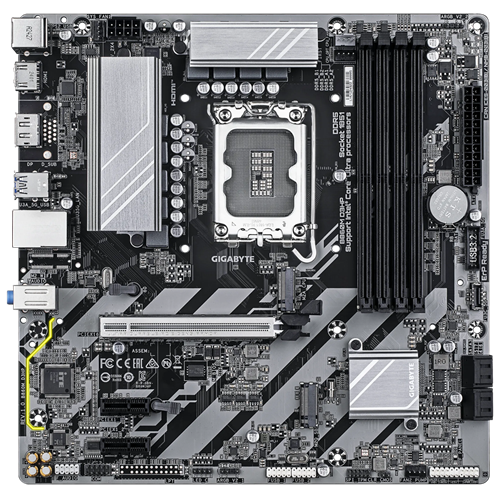

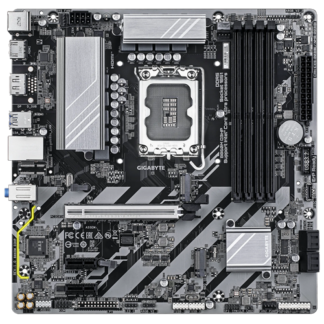

GB B860M D3HP
Код: GSOL-BDABEB1FBAB4
154,00 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
GB B860 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1
Технически параметри
- Manufacturer
- GIGABYTE
- Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version. - CPU's supported
- LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU - Chipset
- Intel® B860 Express Chipset
- Expansion slots
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 - Storage
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices - Rear panel I/O
- iTE® I/O Controller Chip
- USB
- Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers - Audio
- Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel - Lan
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- BIOS
- 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Form factor
- Micro ATX Form Factor
24.4cm x 24.4cm - OS
- Support for Windows 11 64-bit
Support for Windows 10 64-bit - Warranty
- 36 Months
- Чипсет
- Intel B860
- Брой слотове за памет DDR5
- 4
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | GIGABYTE |
|---|---|
| Manufacturer | GIGABYTE |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version. |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Expansion slots | CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage | CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Memory type | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules |
| Rear panel I/O | iTE® I/O Controller Chip |
| USB | Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 3 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Connectors | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;1 x system fan header;1 x system fan/water cooling pump header;2 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;Back Panel Connectors;3 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;1 x DisplayPort*;1 x HDMI port*;3 x USB 3.2 Gen 1 ports;1 x RJ-45 port;3 x audio jacks |
| Audio | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS | Support for Windows 11 64-bit;Support for Windows 10 64-bit |
| Warranty | 36 Months |
| Чипсет | Intel B860 |
| Брой слотове за памет DDR5 | 4 |
| Брой SATA3 портове за диск | 4 |
