В наличност

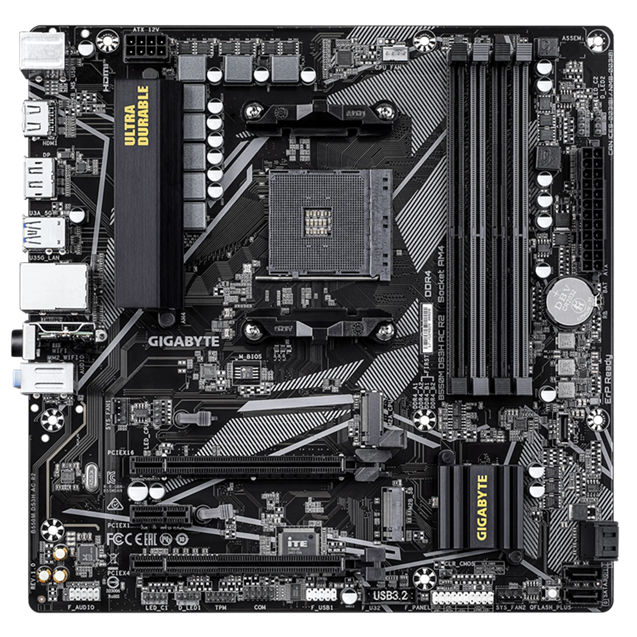

GB B550M DS3H AC R2 / AM4
Код: GSOL-C5BA6D804A61
115,93 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
GB B550 4xDDR4 4xSATA3 RAID HDMI DVI 2xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi
Технически параметри
- Manufacturer
- GIGABYTE
- Graphics
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports. - CPU's supported
- AMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE'
s website for the latest CPU support list.) - Chipset
- AMD B550
- Rear panel I/O
- iTE® I/O Controller Chip
- USB
- CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - Audio
- Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. - Lan
- Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- Wireless
- Realtek® Wi-Fi RTL8821CE
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.0
- Support for 11ac wireless standard - Bluetooth
- 5.0
- BIOS
- 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Form factor
- Micro ATX Form Factor
24.4cm x 24.4cm - OS
- Support for Windows 11 64-bit
Support for Windows 10 64-bit - Warranty
- 36 Months
- Чипсет
- AMD B550
- Брой слотове за памет DDR4
- 4
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | GIGABYTE |
|---|---|
| Manufacturer | GIGABYTE |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz;* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports. |
| CPU's supported | AMD Socket AM4, support for:;AMD Ryzen™ 5000 G-Series Processors/;AMD Ryzen™ 5000 Series Processors/;AMD Ryzen™ 4000 G-Series Processors/;AMD Ryzen™ 3000 G-Series Processors/;AMD Ryzen™ 3000 Series Processors;(Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B550 |
| Expansion slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4;- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:;- AMD Ryzen™ 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs;- AMD Ryzen™ 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs;1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Memory type | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory;Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules |
| Rear panel I/O | iTE® I/O Controller Chip |
| USB | CPU:;- 4 x USB 3.2 Gen 1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Connectors | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable LED strip headers;2 x RGB LED strip headers;1 x CPU cooler LED strip/RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);1 x serial port header;1 x Clear CMOS jumper;1 x Q-Flash Plus button;Back Panel Connectors;2 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;1 x HDMI port (Note);1 x DisplayPort (Note);4 x USB 3.2 Gen 1 ports;1 x RJ-45 port;2 x antenna connectors;3 x audio jacks |
| Audio | Realtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Wireless | Realtek® Wi-Fi RTL8821CE;- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band;- BLUETOOTH 5.0;- Support for 11ac wireless standard |
| Bluetooth | 5.0 |
| BIOS | 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS | Support for Windows 11 64-bit;Support for Windows 10 64-bit |
| Warranty | 36 Months |
| Чипсет | AMD B550 |
| Брой слотове за памет DDR4 | 4 |
| Брой SATA3 портове за диск | 4 |
От поръчката до готовата машина
След поръчката потвърждаваме наличността и срока по телефона.
Срок за доставка: 1–7 работни дни. Цената е крайна и е с включен ДДС.
При въпрос или необходимост от промяна се свързваш директно с GSOL, а не с анонимен външен склад.
