В наличност

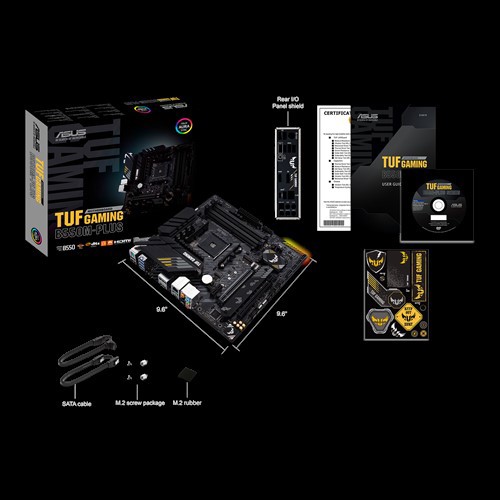

ASUS TUF GAMING B550M-PLUS/AM4
Код: GSOL-68C2083AB69D
121,70 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
ASUS B550 4xDDR4 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1
Технически параметри
- Graphics
- 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ) - Chipset
- AMD B550
- Expansion slots
- 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1 - Rear panel I/O
- 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
2 x USB 2.0
4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s) - Audio
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets.
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors - Lan
- Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard - BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) - OS
- Windows® 10 64-bit
- Warranty
- 36 Months
- Производител
- ASUS
- Чипсет
- AMD B550
- Брой слотове за памет DDR4
- 4
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | ASUS |
|---|---|
| Graphics | 1 x DisplayPort 1.2; 1 x HDMI 2.1(4K@60HZ) |
| Chipset | AMD B550 |
| Expansion slots | 3rd Gen AMD Ryzen™ Processors; 1 x PCIe 4.0 x16 (x16 mode); 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD B550 Chipset; 1 x PCIe 3.0 x16 (x4 mode); 1 x PCIe 3.0 x1 |
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports; 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support; 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support; AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10 |
| Memory type | 3rd Gen AMD Ryzen™ Processors; 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *; 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors; 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU. |
| Rear panel I/O | 1 x PS/2 keyboard/mouse combo port(s); 1 x DisplayPort; 1 x HDMI; 1 x LAN (2.5G) port(s); 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®); 2 x USB 2.0; 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™); 1 x Optical S/PDIF out; 5 x Audio jack(s); 1 x BIOS FlashBack™ Button(s) |
| Connectors | 1 x CPU Fan connector(s); 1 x CPU OPT Fan connector(s); 2 x Chassis Fan connector(s); 2 x Aura RGB Strip Headers; 1 x Addressable Gen 2 header(s); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode); 1 x SPI TPM header; 4 x SATA 6Gb/s connector(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x COM port header; 1 x Speaker connector |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets.; - Optical S/PDIF out port(s) at back panel; - Audio cover; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors |
| Lan | Realtek RTL8125B 2.5Gb Ethernet; TUF LANGuard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| OS | Windows® 10 64-bit |
| Warranty | 36 Months |
| Производител | ASUS |
| Чипсет | AMD B550 |
| Брой слотове за памет DDR4 | 4 |
| Брой SATA3 портове за диск | 4 |
От поръчката до готовата машина
След поръчката потвърждаваме наличността и срока по телефона.
Срок за доставка: 1–7 работни дни. Цената е крайна и е с включен ДДС.
При въпрос или необходимост от промяна се свързваш директно с GSOL, а не с анонимен външен склад.
