В наличност

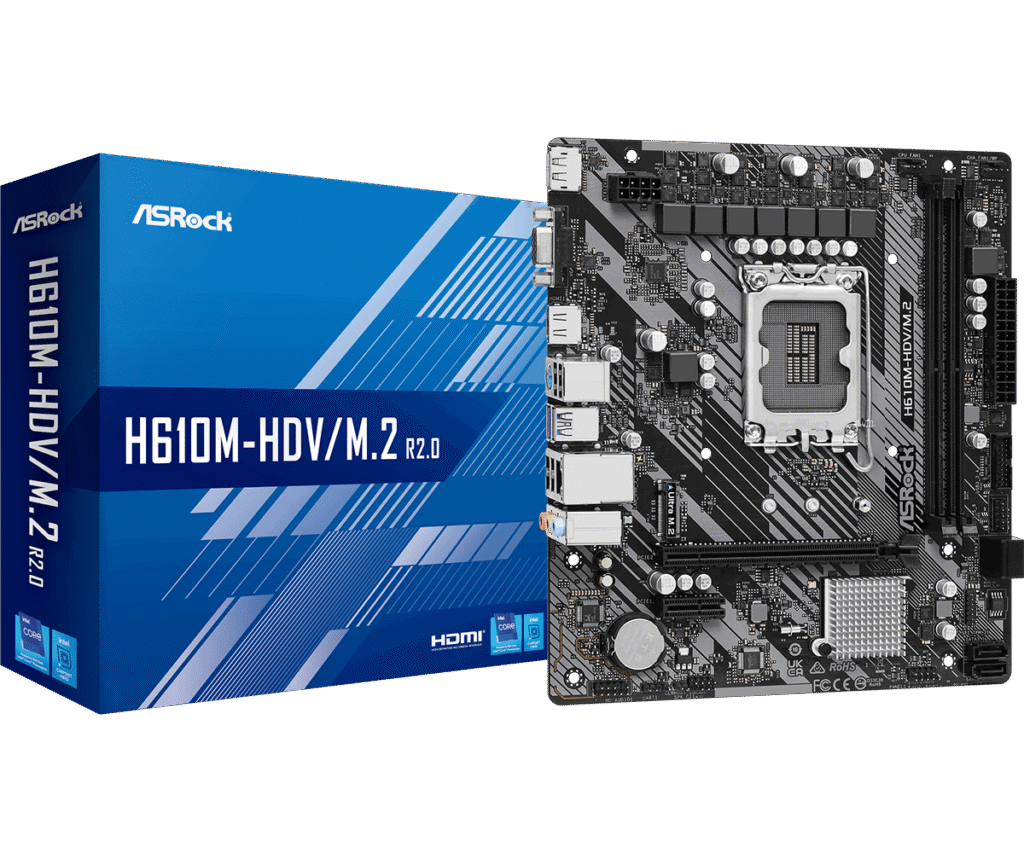

ASROCK H610M-HDV/M.2 R2.0/DDR4
Код: GSOL-AA5F0F609235
73,83 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
ASROCK H610 2xDDR4 4xSATA3 HDMI DP VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
Технически параметри
- Chipset
- - Intel® H610
- Expansion slots
- CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*` Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1)
- Storage
- Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors - Memory type
- Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 3200
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB*
Supports Intel® Extreme Memory Profile (XMP) 2.0 - Rear panel I/O
- 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone - Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection - Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE - BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
PU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment - Form factor
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Solid Capacitor design - OS
- - Microsoft® Windows® 10 64-bit / 11 64-bit
- Warranty
- 36 Months
- Производител
- ASROCK
- Чипсет
- Intel H610
- Брой слотове за памет DDR4
- 2
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | ASROCK |
|---|---|
| Graphics | Intel® Xe Graphics Architecture (Gen 12); Three graphics output options: D-Sub, HDMI and DisplayPort 1.4; Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz; Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Chipset | - Intel® H610 |
| Expansion slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*` Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE1) |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors |
| Memory type | Dual Channel DDR4 Memory Technology; 2 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 3200; Supports ECC UDIMM memory modules (operate in non-ECC mode); Max. capacity of system memory: 64GB*; Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Rear panel I/O | 1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); 4 x USB 2.0 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone |
| Connectors | 1 x SPI TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin)*; 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Connector; 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection |
| Lan | PCIE x1 Gigabit LAN 10/100/1000 Mb/s; 1 x Realtek RTL8111H; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; PU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| Form factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm; Solid Capacitor design |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| Производител | ASROCK |
| Чипсет | Intel H610 |
| Брой слотове за памет DDR4 | 2 |
| Брой SATA3 портове за диск | 4 |
От поръчката до готовата машина
След поръчката потвърждаваме наличността и срока по телефона.
Срок за доставка: 1–7 работни дни. Цената е крайна и е с включен ДДС.
При въпрос или необходимост от промяна се свързваш директно с GSOL, а не с анонимен външен склад.
