В наличност

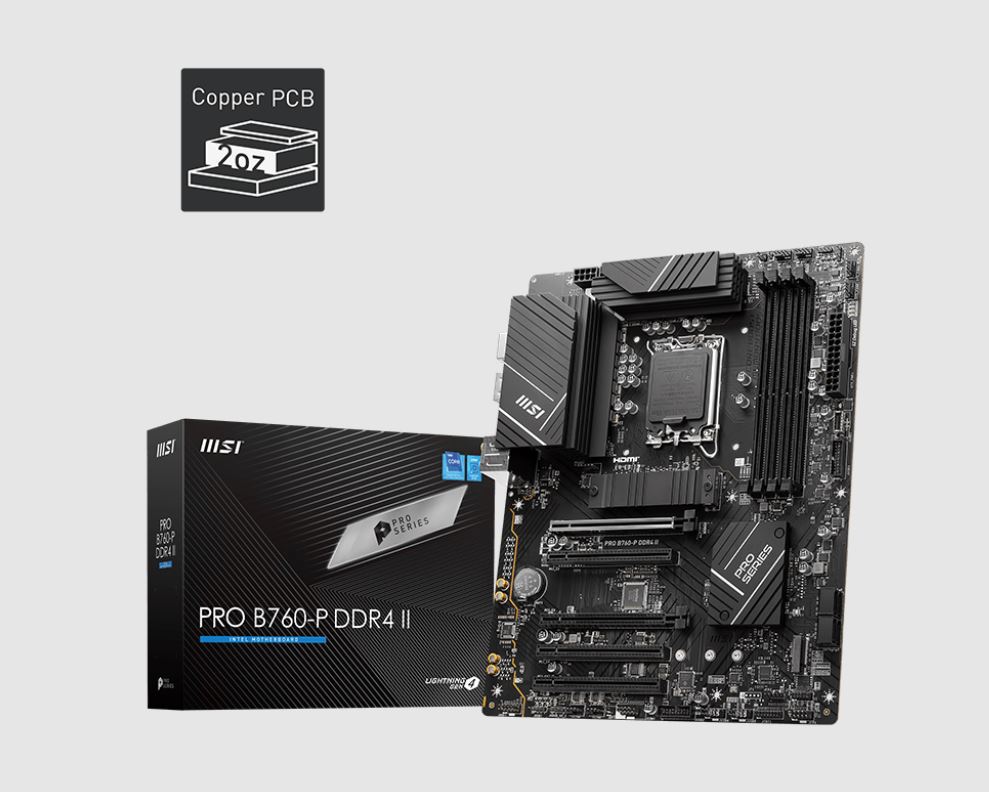

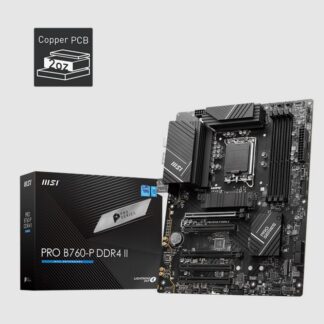

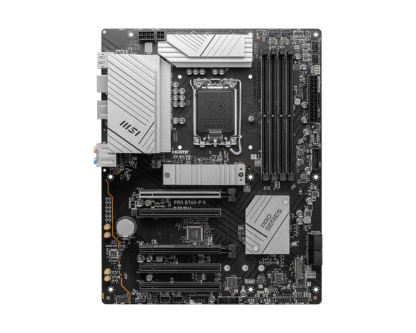

MSI PRO B760-P II
Код: GSOL-595BD89AB690
143,39 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
MSI B760 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 1XGLAN 5xPCIEx16
Технически параметри
- Model
- PRO B760-P II
- Graphics
- 1x HDMI
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz* - Chipset
- INTEL B760
- Expansion slots
- 5x PCIe x16 slots
• PCI_E1 slot (From CPU)
• Supports PCIe 4.0 x16
• PCI_E2 slot (From B760 chipset)
• Supports PCIe 3.0 x1
• PCI_E3 slot (From B760 chipset)
• Supports PCIe 4.0 x4
• PCI_E4 slot (From B760 chipset)
• Supports PCIe 3.0 x1
• PCI_E5 slot (From B760 chipset)
• Supports PCIe 3.0 x1 - Storage
- 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G - Connectors
- •1x Front panel audio connector •2x System panel connectors
•1x Chassis Intrusion connector •1x TPM module connector
•1x Serial port connector •1x TBT connector (Supports RTD3)
•1x 4-pin CPU fan connector
•1x 4-pin water-pump fan connector
•5x 4-pin system fan connectors - Audio
- Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output - Lan
- Realtek® RTL8125BG 2.5G LAN
- BIOS
- 1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
- Form factor
- ATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm)
- OS
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- Other
- Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
- Производител
- MSI
- Чипсет
- Intel B760
- Брой слотове за памет DDR5
- 4
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | MSI |
|---|---|
| Model | PRO B760-P II |
| Graphics | 1x HDMI; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*; |
| Chipset | INTEL B760 |
| Expansion slots | 5x PCIe x16 slots; • PCI_E1 slot (From CPU); • Supports PCIe 4.0 x16; • PCI_E2 slot (From B760 chipset); • Supports PCIe 3.0 x1; • PCI_E3 slot (From B760 chipset); • Supports PCIe 4.0 x4; • PCI_E4 slot (From B760 chipset); • Supports PCIe 3.0 x1; • PCI_E5 slot (From B760 chipset); • Supports PCIe 3.0 x1; |
| Storage | 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; 4x SATA 6G; |
| Memory type | 4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC); (4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC); (3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC); (2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP); |
| Rear panel I/O | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 1x USB 10Gbps Type C (Rear); 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x TBT connector (JTBT, supports RTD3); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports; |
| Connectors | •1x Front panel audio connector •2x System panel connectors; •1x Chassis Intrusion connector •1x TPM module connector; •1x Serial port connector •1x TBT connector (Supports RTD3);•1x 4-pin CPU fan connector ; •1x 4-pin water-pump fan connector; •5x 4-pin system fan connectors; |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output; |
| Lan | Realtek® RTL8125BG 2.5G LAN |
| BIOS | 1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language |
| Form factor | ATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm) |
| OS | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Other | Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics |
| Производител | MSI |
| Чипсет | Intel B760 |
| Брой слотове за памет DDR5 | 4 |
| Брой SATA3 портове за диск | 4 |
От поръчката до готовата машина
След поръчката потвърждаваме наличността и срока по телефона.
Срок за доставка: 1–7 работни дни. Цената е крайна и е с включен ДДС.
При въпрос или необходимост от промяна се свързваш директно с GSOL, а не с анонимен външен склад.
