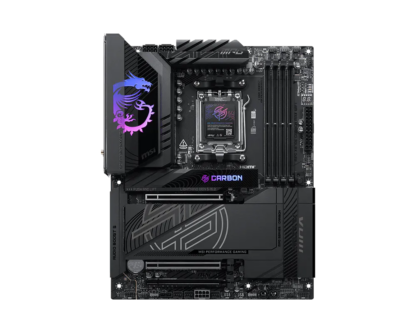

Не сте сигурни? Намерете по-подходящ продукт за 60 секундиMSI MPG X870E CARBON MAX WIFI
| Марка | MSI |
|---|---|
| Manufacturer | MSI |
| Socket | Socket AM5 |
| Graphics | 1x HDMI™; Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*; 2x Type-C DisplayPort; USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*; *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| CPU's supported | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Expansion slots | 3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU); PCI_E3 Gen PCIe 4.0 supports up to x4; PCI_E1 & PCI_E2 slots; • Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor); PCI_E3 slot; • Supports up to PCIe 4.0 x4 |
| Storage | 4x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M.2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M.2_2*/** slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors; M.2_3 slot; • Supports up to PCIe 4.0 x4; M.2_4 slot; • Supports up to PCIe 4.0 x4; *The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series.; ** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. |
| RAID | •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; •Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices; *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.; ** RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors. |
| Memory type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard only have single-sided latches.; • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Rear panel I/O | USB 10Gbps Type-A; Flash BIOS Button; Clear CMOS Button; Smart Button; 2.5G LAN; 5G LAN; Audio Connectors; HDMI™; USB 40Gbps Type-C; USB 10Gbps Type-C; USB 10Gbps Type-A; USB 10Gbps Type-C; Wi-Fi / Bluetooth; Optical S/PDIF Out |
| USB | 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 9x USB 10Gbps Type A (Rear); 2x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front); 2x USB 40Gbps Type C (Rear) |
| Connectors | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 5x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Thermal Sensor connectors(T_SEN); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports |
| Audio | Realtek® ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel; Supports S/PDIF output |
| Lan | 1x Realtek® 8126 5G LAN; 1x Realtek® 8125 2.5G LAN |
| Wireless | Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2 |
| Form factor | ATX, 243.84mmx304.8mm |
| OS | Support for Windows® 11 64-bit |
