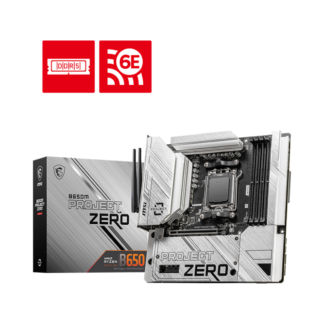

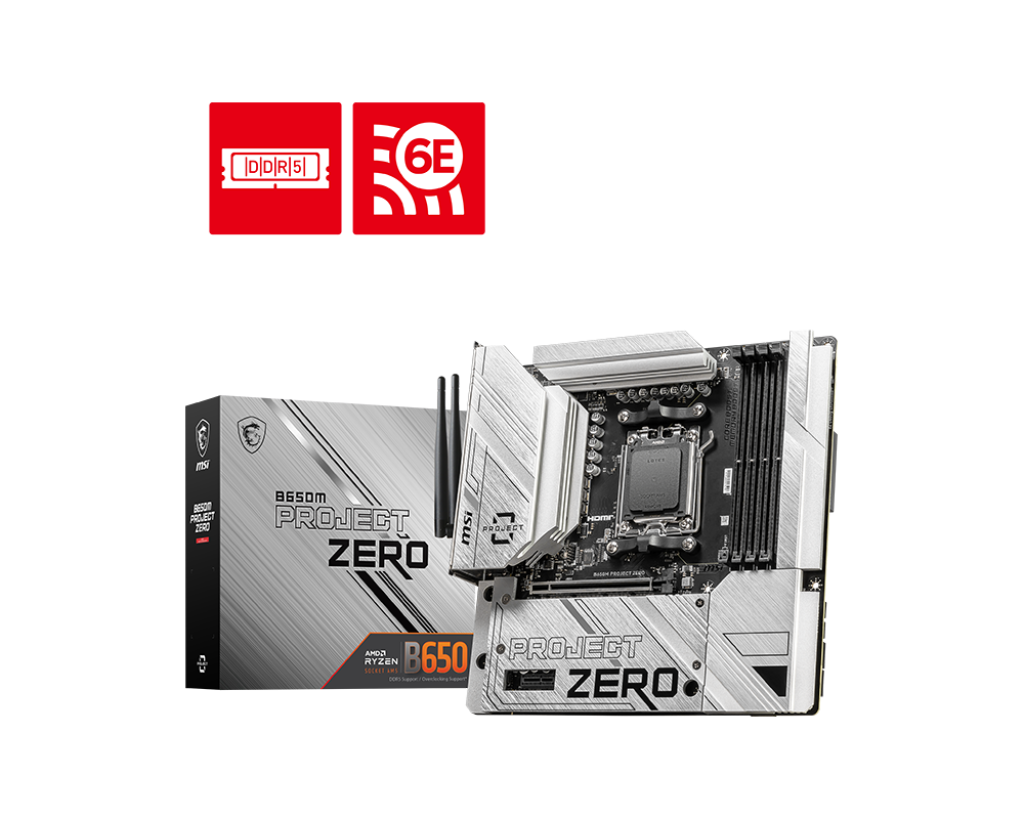

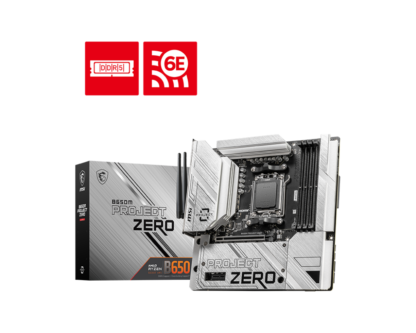

MSI B650M PROJECT ZERO

MSI B650 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 1xPCIE1 WiFi

Технически параметри

Graphics

1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

Expansion slots

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Memory type

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Rear panel I/O

DisplayPort
2.5G LAN
USB 2.0
USB 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
Clear CMOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Connectors

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports up to 32-Bit/384 kHz playback on front panel

Lan

Realtek® RTL8125BG 2.5Gbps LAN

Wireless

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth

5.3

Form factor

mATX, 243.84mmx243.84mm

OS

Support for Windows® 11 64-bit, Windows® 10 64-bit

Производител

MSI

Чипсет

AMD B650

Брой слотове за памет DDR5

4

Брой SATA3 портове за диск

4

Гаранция

36 месеца
