В наличност

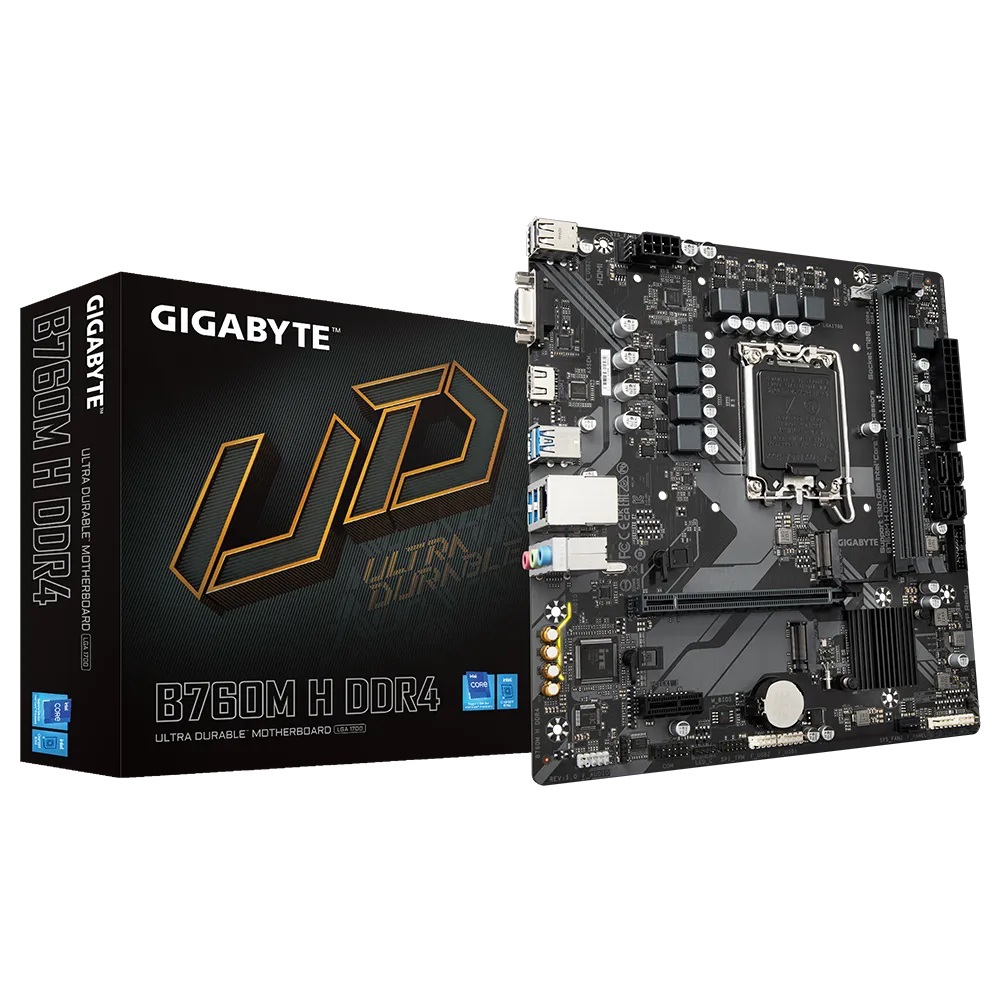

GB B760M H DDR4 / LGA1700
Код: GSOL-E92192ED4423
98,51 €
с включен ДДС
Възможност за индивидуална фирмена оферта
Доставка: 1–7 работни дниСлед потвърждение на наличността
Потвърждение от консултантСвързваме се преди изпълнение
Крайна ценаБез скрити добавки
Сервиз от GSOLПоддръжка след покупката
Тест преди доставкаПроверена стабилност
GB B760 2xDDR4 4xSATA3 RAID HDMI VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1
Технически параметри
- Graphics
- Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports. - Chipset
- Intel® B760 Express Chipset
- Expansion slots
- CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 - Storage
- CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices - Rear panel I/O
- 2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks - Audio
- Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out - Lan
- Realtek® GbE LAN chip (1 Gbps/100 Mbps)
- BIOS
- 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 - Form factor
- Micro ATX Form Factor
23.0cm x 21.5cm - OS
- Support for Windows 11 64-bit
Support for Windows 10 64-bit - Warranty
- 36 Months
- Чипсет
- Intel B760
- Брой слотове за памет DDR4
- 2
- Брой SATA3 портове за диск
- 4
- Гаранция
- 36 месеца
| Марка | GIGABYTE |
|---|---|
| Manufacturer | GIGABYTE |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports. |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Expansion slots | CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage | Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Memory type | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules |
| Rear panel I/O | iTE® I/O Controller Chip |
| USB | Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports available through the internal USB header;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel |
| Connectors | 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable RGB Gen2 LED strip headers;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;1 x USB 2.0/1.1 header;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;Back Panel Connectors;1 x DisplayPort (Note);1 x HDMI port (Note);3 x USB 3.2 Gen 1 port;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks |
| Audio | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| BIOS | 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | Micro ATX Form Factor; 24.4cm x 22.0cm |
| OS | Support for Windows 11 64-bit;Support for Windows 10 64-bit |
| Warranty | 36 Months |
| Чипсет | Intel B760 |
| Брой слотове за памет DDR5 | 2 |
| Брой SATA3 портове за диск | 4 |
От поръчката до готовата машина
След поръчката потвърждаваме наличността и срока по телефона.
Срок за доставка: 1–7 работни дни. Цената е крайна и е с включен ДДС.
При въпрос или необходимост от промяна се свързваш директно с GSOL, а не с анонимен външен склад.
