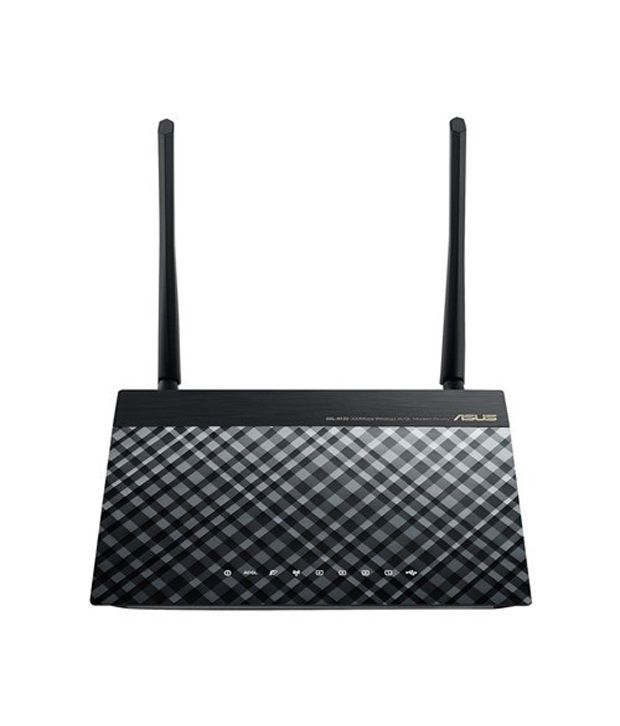

ASUS DSL-N12U ADSL WL N ROUTER

ASUS ROUTER0_ADSL MBIT EXTERNAL_ANTENNA 2.4GHZ 300MBPS 4xLAN USB

Технически параметри

Part number / Product code

-

Model

DSL-N12U ADSL

Interface

1 x RJ11 for ADSL
4 x RJ45 for 10/100 BaseT for LAN
Fixed 5 dBi antenna x 2
USB 2.0 x 1
WPS Button, Reset Button, Power Switch, Wireless on/off Switch.

Frequency

2.40 GHz

Data rate

Wi-Fi Data Rate: 802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
xDSL Data Rate: ANSI T1.413 Issue 2
ITU-T G.992.1 Annex A (G.dmt)
ITU-T G.992.2 (G.lite)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.dmt.bis)
ITU-T G.992.5 Annex A/M
ADSL 2/2+ 24Mbps downstream.

Security

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support

VPN support

IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through.

Management

Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log &amp
Trace function.

Protocols

-

Certifications

CE, FCC, C-Tick, Telepermit, IC, IDA, NCC, PCT, Wi-Fi

Standarts

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4

LED indicators

Power, ADSL, Internet, WLAN, LAN x 4

Environment

Operating Temperature: -10 °C to 50 °C (14 °F to 122 ?F)
Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing).

Dimensions

179 x 119 x 37 mm

Warranty

36 Months

Производител

ASUS

Базова честота

2.4GHz

Максимална WI-FI скорост

300Mbps

Лан портове

4

Видео изход

USB

Гаранция

36 месеца
