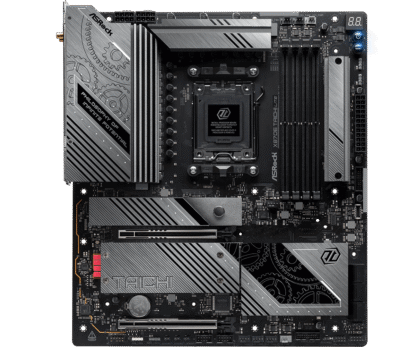

Не сте сигурни? Намерете по-подходящ продукт за 60 секундиASROCK X870E TAICHI LITE / AM5
| Марка | ASROCK |
|---|---|
| Manufacturer | ASRock |
| Model | X870E Taichi Lite |
| Socket | AM5 |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*; * Only the CPU's embedded graphics can be displayed through USB4 ports.; If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics. |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors; Supports ASRock Hyper BCLK Engine |
| Chipset | AMD X870E |
| Expansion slots | CPU:; - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*; Chipset:; - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire™ |
| Storage | CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 6 x SATA3 6.0 Gb/s Connectors; * Supports NVMe SSD as boot disks; M2_1 is the first priority for M.2 installation.; M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Memory type | Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*; Max. capacity of system memory: 256GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*; *Please refer to Memory Support List on ASRock's website for more information. |
| Rear panel I/O | 2 x Antenna Ports; - 1 x HDMI Port; - 1 x Optical SPDIF Out Port; - 2 x USB4 Type-C Ports (40 Gb/s)*; - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.); - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)**; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x Clear CMOS Button; - 1 x BIOS Flashback Button; - 1 x Line Out Jack (Gold Audio Jack); - 1 x Microphone Input Jack (Gold Audio Jack) |
| USB | CPU:; - 2 x USB4 Type-C (Rear); - 2 x USB 3.2 Gen2 Type-A (Rear); Chipset:; - 1 x USB 3.2 Gen2x2 Type-C (Front); - 3 x USB 3.2 Gen2 Type-A (Rear); - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front); - 6 x USB 2.0 (2 Rear, 4 Front) |
| Connectors | 3 x Thermistor Cable Headers; 1 x Power LED and Speaker Header; 1 x RGB LED Header*; 3 x Addressable LED Headers**; 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***; 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***; 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector (15μ Gold Audio Connector); 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s); 1 x Dr. Debug with LED; 1 x Power Button with LED; 1 x Reset Button with LED |
| Audio | 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec); WIMA Audio Capacitors (For Rear Outputs); ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR); Individual PCB Layers for R/L Audio Channel; Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets); Nahimic Audio |
| Lan | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s; Realtek RTL8126 |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module; Supports IEEE 802.11a/b/g/n/ac/ax/axe/be; Supports 2.4GHz/5GHz/6GHz* frequency band; Supports 160MHz channel bandwidth with 6GHz* frequency band; 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.4; Supports MU-MIMO |
| Bluetooth | 5.4 |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form factor | EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm; 8 Layer PCB; 2oz Copper PCB; |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
