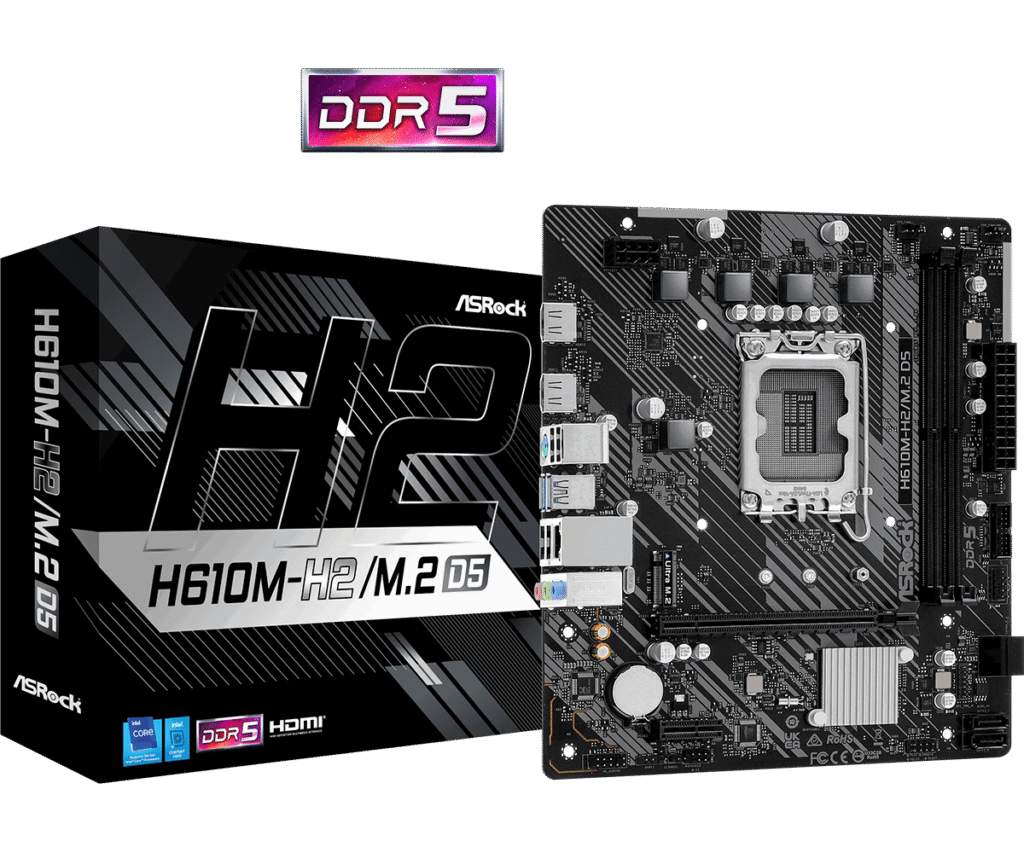

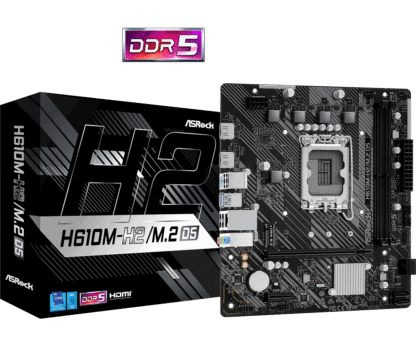

ASROCK H610M-H2/M.2 D5

ASROCK H610 2xDDR5 4xSATA3 2xHDMI 1xM2 GLAN 1xPCIEx16 1xPCIEx1

Технически параметри

Graphics

- Intel® Xe Graphics Architecture (Gen 12)
- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

Chipset

- Intel® H610

Expansion slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*

Storage

Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

Memory type

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
- 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
- Max. capacity of system memory: 96GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0

Rear panel I/O

- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Connectors

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)e.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Lan

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Form factor

- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS

- Microsoft Windows® 10 64-bit / 11 64-bit

Warranty

36 Months

Производител

ASROCK

Чипсет

Intel H610

Брой слотове за памет DDR5

2

Брой SATA3 портове за диск

4

Гаранция

36 месеца
