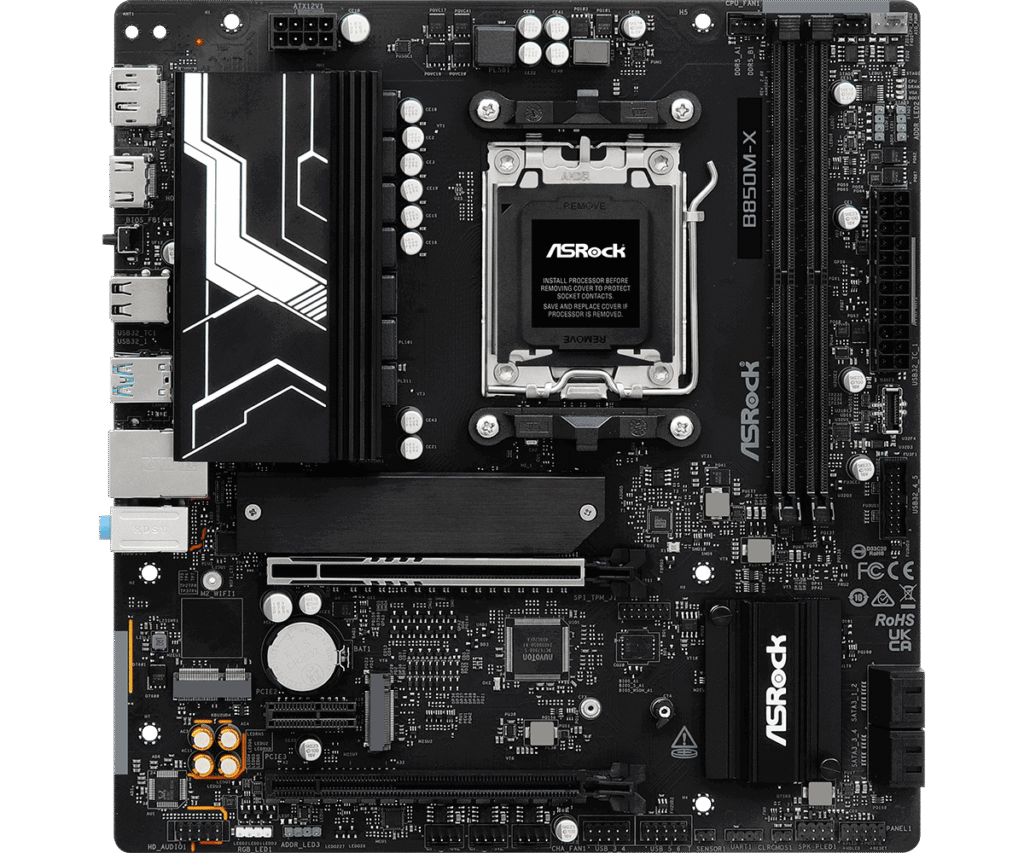

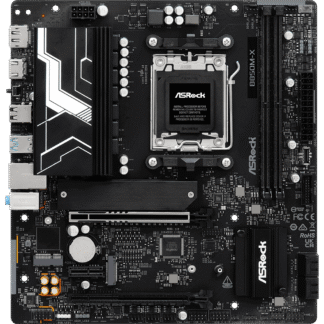

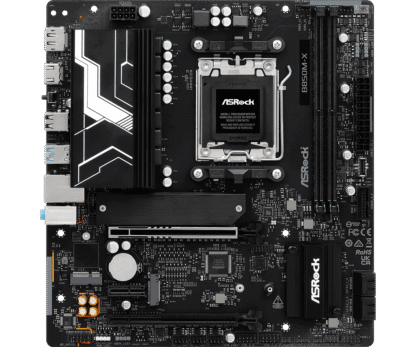

ASROCK B850M-X R2.0

ASROCK B850 2xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1

Технически параметри

Manufacturer

ASRock

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

CPU's supported

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

AMD B850

Expansion slots

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Memory type

Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Rear panel I/O

2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

USB

CPU:
- 3 x USB 3.2 Gen1 Type-A (Rear)
- 1 x USB 2.0 (Rear (USB_2))
Chipset:
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 2 x USB 3.2 Gen1 Type-A (Front)
- 5 x USB 2.0 (1 Rear (USB_1), 4 Front)

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

Lan

2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Form factor

Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

OS

Microsoft Windows® 10 64-bit / 11 64-bit

Other

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Warranty

36 Months

Производител

ASROCK

Чипсет

AMD B850

Брой слотове за памет DDR5

2

Брой SATA3 портове за диск

4

Гаранция

36 месеца
